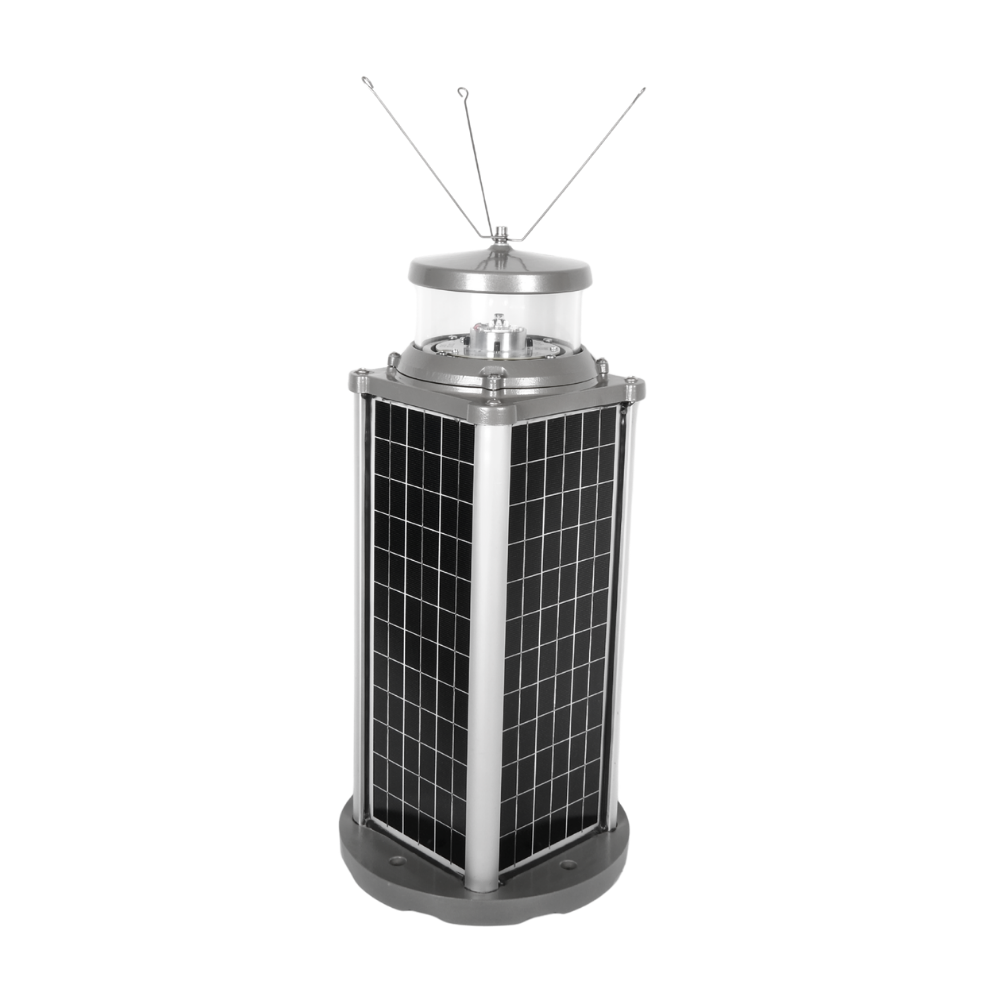

LN25-MLS Smart Marine Lantern
LN25-MLS is designed with a robust body structure and a corrosion-resistant aluminum alloy body, making it highly durable against the toughest meteorological conditions. It operates completely independently with its built-in solar panels and battery, featuring LEDs with a lifespan of over 100,000 hours, compliant with IALA Recommendation E200-2. It is visible from a distance of 2-5 nautical miles and can be supplied in yellow, red, green, and white colors, compliant with IALA Recommendation E200-1 color spectrum. The flashing period and light intensity can be adjusted via an IR remote control, and its high-quality integrated GPS receiver allows it to synchronize with other LN series beacon lights.
High-Quality Lens Group
LN25-MLS is equipped with carefully developed optical components to ensure precise light distribution. These optical components are compliant with IALA Recommendation E200-1, E200-2, and E200-3, ensuring that the vertical light deviation angle exceeds 8 degrees and allowing seamless visibility from all directions with its 360-degree lens.
Built-In GPS
Equipped with a high-quality built-in GPS receiver, LN25-MLS can synchronize with multiple LN series beacons. Thanks to its Sync Start and Stop feature, it calculates the sunrise and sunset times of its location daily, ensuring that it turns on and off simultaneously. This corrects any errors in scattered activation times caused by tilt, angle, or contamination, guaranteeing operation between sunset and sunrise times. All synchronized LN series beacon lights start and stop simultaneously.
Built-In GSM (Optional)
Designed to operate fully independently in hard-to-reach areas, LN series beacon lights continuously monitor their operational status and can generate alerts for issues such as contamination on the solar panel or insufficient energy production. With the optional GSM module, LN series beacons can be configured via a web page, transmit data such as operational, battery status, and location information, and send alarms if they malfunction or move outside the defined location. In case of brightness reduction, efficiency decrease, or non-operation, fault information is transmitted via GSM.
Highly Efficient Solar Panels and Maintenance-Free Battery
With its high-efficiency solar panels capable of reaching up to 34 W, it can fully charge its built-in battery without needing any other energy source. Its deep cycle battery, with a capacity of up to 12V 24Ah, ensures reliable operation for extended periods without requiring maintenance.
Light Features | |
---|---|
Light Source | LED |
Color Options | Yellow, Red, Green, White |
Maximum Light Intensity (CD) | Yellow 50 Cd, Red 60 Cd, Green 106 Cd, White 128 Cd |
Visibility Distance (NM) | 2-5 NM @ 0.74 |
Horizontal Light Distribution (Degree) | 360° |
Vertical Light Distribution | ±8° |
Flashing Pattern | IALA-compliant 251 different mode settings, user-adjustable (Optional) |
Flashing Mode | Based on light, at a specified time, or automatically according to sunrise and sunset times (Optional) |
Brightness | %25, %50, %75, %100, multiple brightness settings |
Control | IR Remote, via GSM, or device-integrated control switches |
LED Lifespan (Hours) | >100000 |
Lens | Single LED Side Spread 360° Transparent Polycarbonate |
Electrical Features | |
Nominal Voltage | 12 V |
Battery Capacity (AH) | 12 Ah / 24 Ah |
Battery Type | SLA (Sealed Lead Acid AGM Battery) |
Battery Protection | Low and High Voltage, Short Circuit, and Current Protection |
Autonomous Operation | >10 Days |
Solar Panel Technology | Monocrystalline |
Solar Panel Power (W) | 33.6 W (4X8.4 W) |
Charger | MPPT |
Physical Features | |
---|---|
Body Material | High-Quality Acrylic Paint Coated Marine Grade Aluminum Base and Frame |
Solar Panel | Tempered Glass Protected |
Optical Cover | UV-Resistant Acrylic PMMA |
Water Resistance | IP 68 |
Temperature Range | -20° + 60°C |
Mounting | Standard 200 mm Bolt Pattern |
Dimensions | Height 650 mm; Width 250 mm |
Weight (kg) | 15.4 kg |
Standards and Certificates
- ISO 9001:2015
- EN IEC 61000-6-3:2021, EN IEC 61000-6-4:2019
- IALA Recommendations E200-1, E200-2, E200-3, G1065
