Articulated Protection Pipe

Türk Bayrağı Bu sayfayı Türkçe görüntüleyin

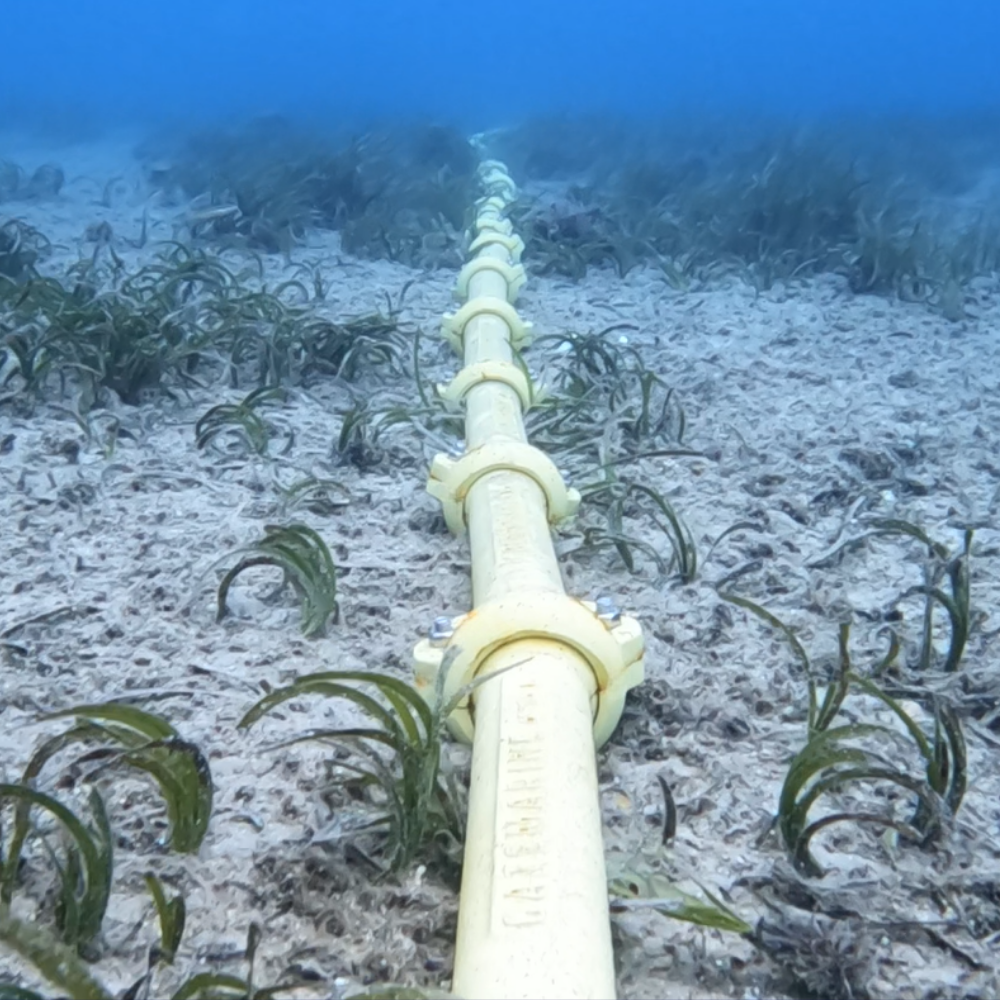

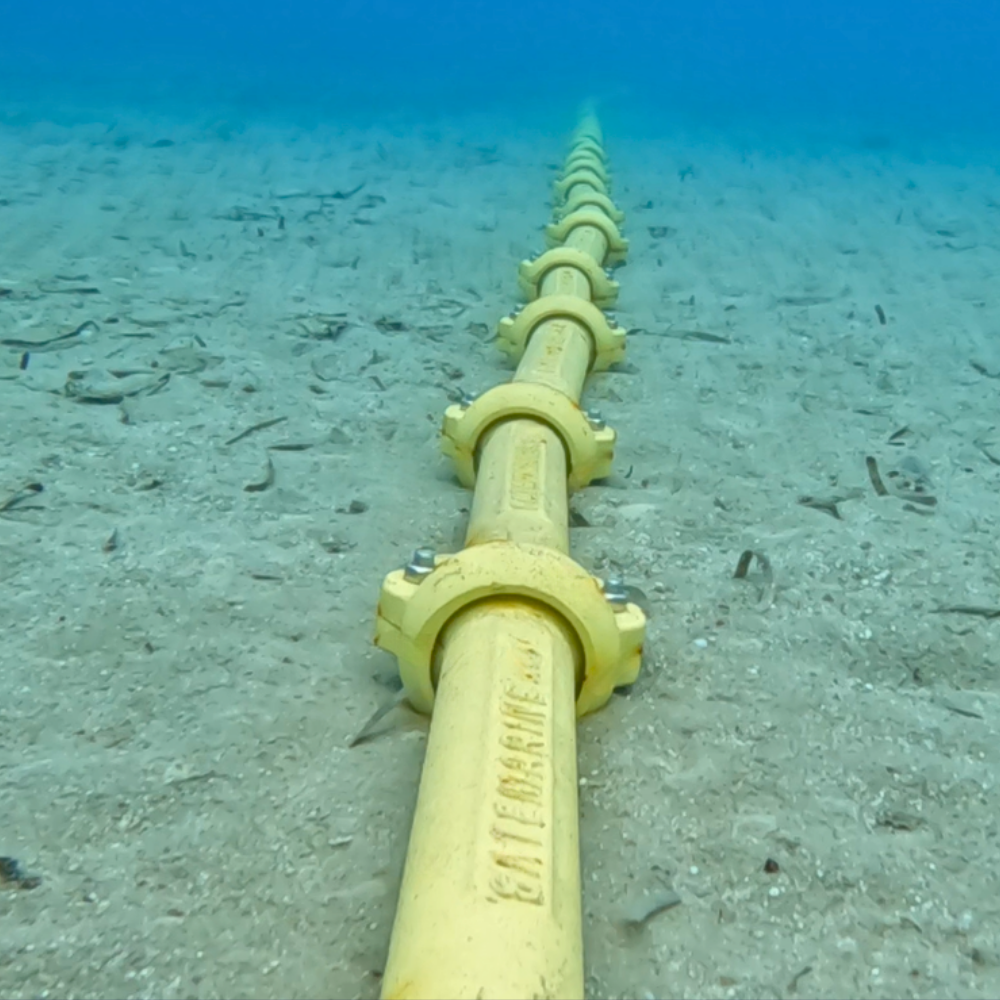

The SONARSEA Articulated Protection Pipe range has been meticulously designed to ensure the protection of subsea cables. This system provides robust safeguarding in various challenging environments, including shallow waters, landfall areas, boulder fields, and rocky seabeds.

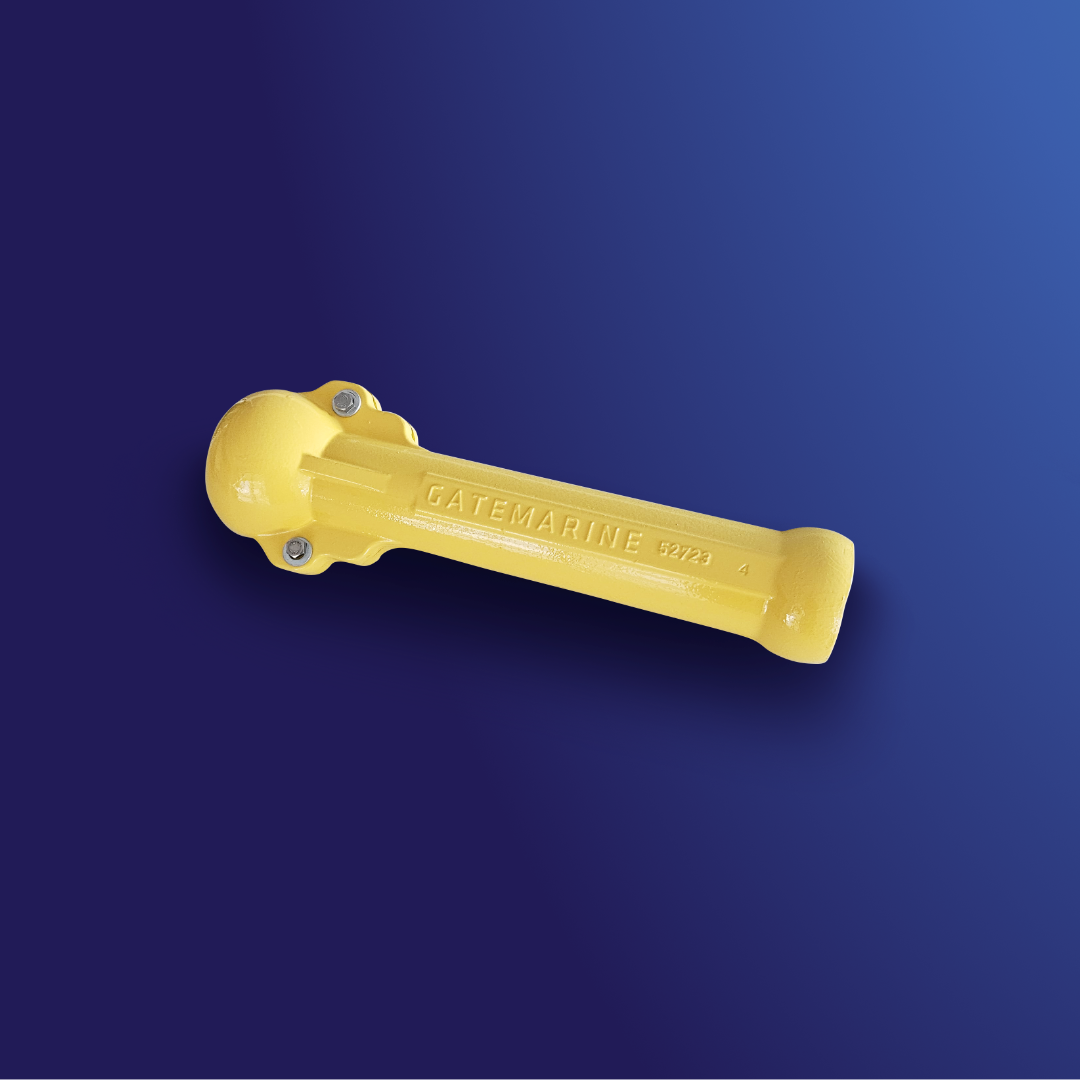

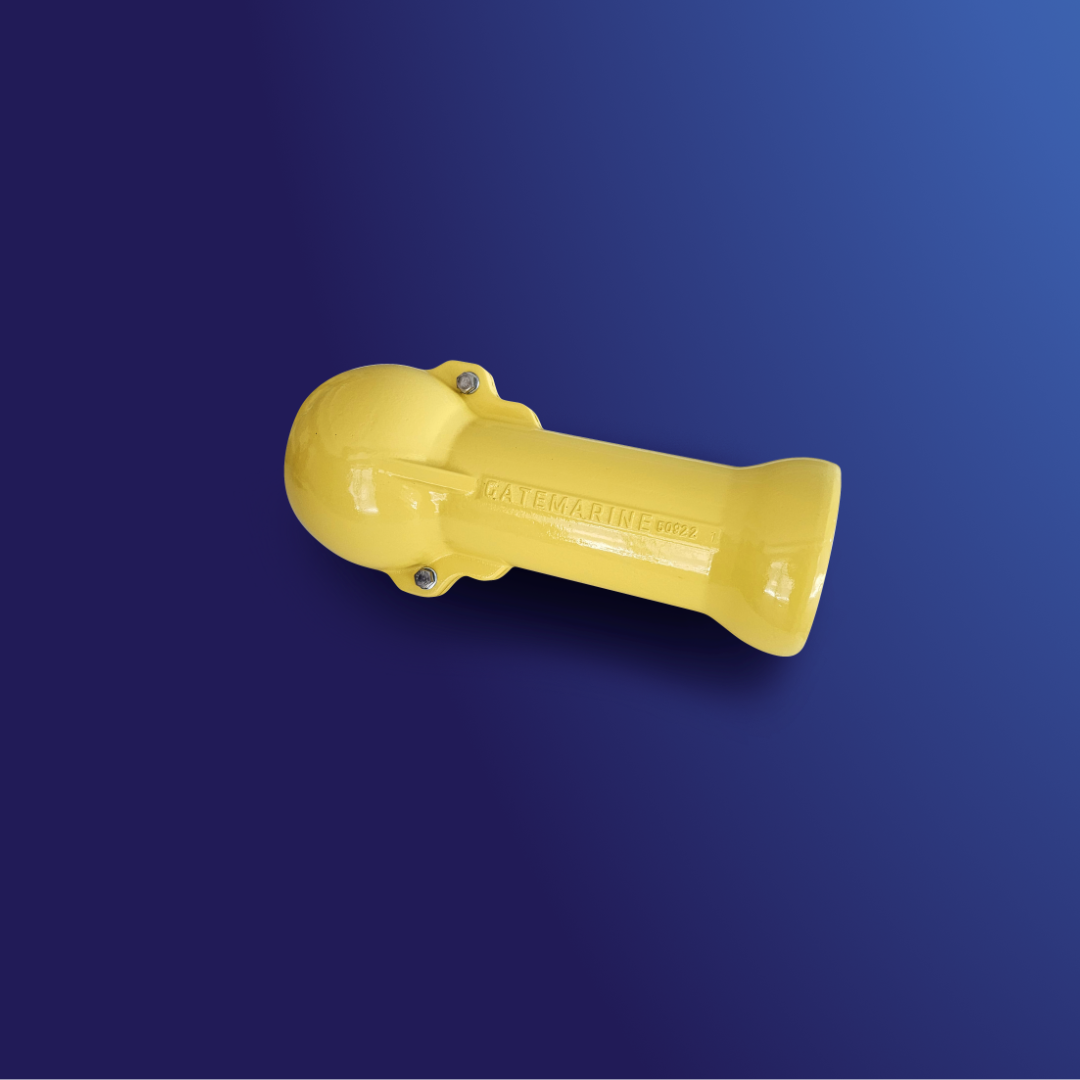

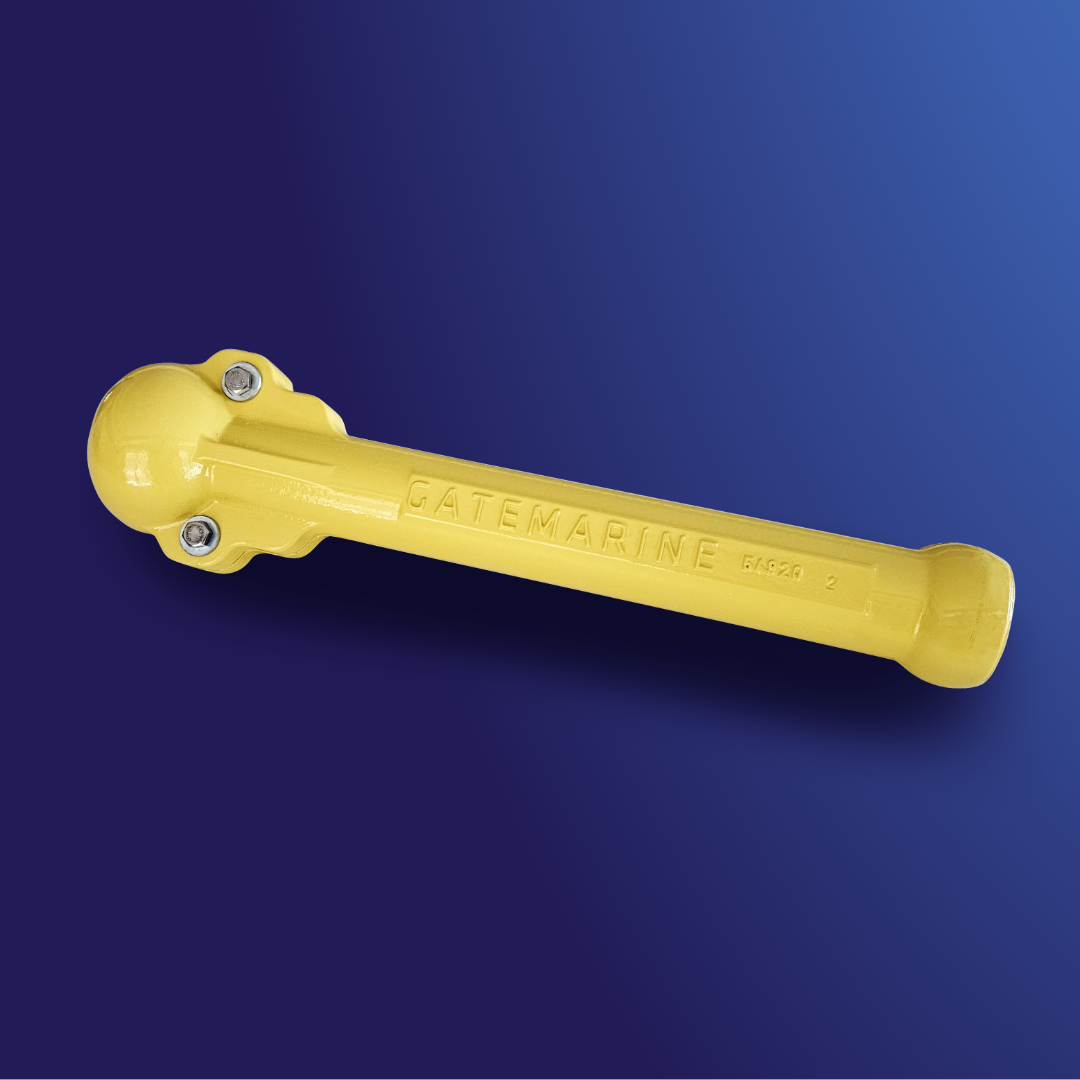

Constructed from interconnected half-shell modules, these pipes create a flexible bend restrictor that securely encircles the cable. Made from reinforced and articulated metal materials, the SONARSEA pipes are highly resistant to impact and abrasion. They are designed for rapid installation and are suitable for protecting fiber optic or power cables with diameters ranging from 10 mm to 150 mm.

Product Features

  • Impact and abrasion protection for the cable.
  • A straightforward installation process, delivering mcost-effective protection.
  • Enhanced stability due to added weight.

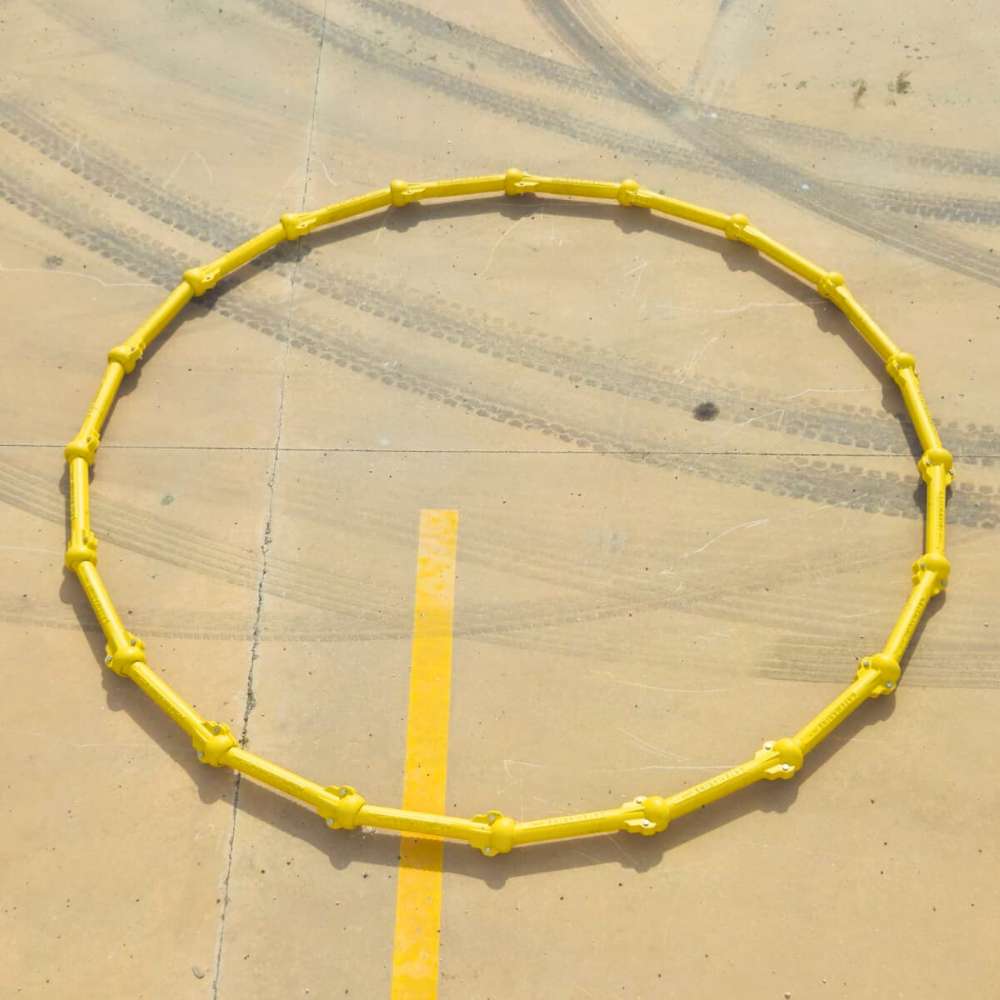

  • Robust Bend Restriction to guarantee adherence to the  product's minimum bend radius



SONARSEA TYPE02R / up to 47mm

Teknik Özellikler Detaylar
Max Cable Diameter 47mm
Effective Length Per Set 1014mm
Weight Per Set 11.8KG
Wall Thickness 10mm
Material Spheroidal Graphite Iron
Material Reference EN-GJS-500-7
Reference Standard EN 1563:2018



SONARSEA TYPE03B / up to 75mm

Teknik Özellikler Detaylar
Max Cable Diameter 75mm
Effective Length Per Set 1000mm
Weight Per Set 15.2KG
Wall Thickness 10mm
Material Spheroidal Graphite Iron
Material Reference EN-GJS-500-7
Reference Standard EN 1563:2018



SONARSEA TYPE04P / up to 150mm

Teknik Özellikler Detaylar
Max Cable Diameter 150mm
Effective Length Per Set 1000mm
Weight Per Set 33.4KG
Wall Thickness 10mm
Material Spheroidal Graphite Iron
Material Reference EN-GJS-500-7
Reference Standard EN 1563:2018
